Connettore seriale

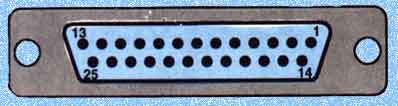

25 poli DB25 maschio
|
|
Piedino |
Descrizione |
| 1 |
STROBE |
| 2 |
D0 = Data
Bit 0 |
| 3 |
D1 = Data
Bit 1 |
| 4 |
D2 = Data
Bit 2 |
| 5 |
D3 = Data
Bit 3 |
| 6 |
D4 = Data
Bit 4 |
| 7 |
D5 = Data
Bit 5 |
| 8 |
D6 = Data
Bit 6 |
| 9 |
D7 = Data
Bit 7 |
| 10 |
ACK = Acknowledge |
| 11 |
BUSY = BUSY |
| 12 |
PE = Paper End |
| 13 |
SEL = Select |
| 14 |
AUTOFD = Autofeed |
| 15 |
ERROR = ERROR |
| 16 |
INIT = Initialize |
| 17 |
SELIN = Select In |
| 18 |
GND = Signal Ground |
| 19 |
GND = Signal Ground |
| 20 |
GND = Signal Ground |
| 21 |
GND = Signal Ground |
| 22 |
GND = Signal Ground |
| 23 |
GND = Signal Ground |
| 24 |
GND = Signal Ground |
| 25 |
GND = Signal Ground |
|
